Weinig Hydromat 23

Verkocht

Weinig Hydromat 23

Plaats:Hardinxveld-Giessendam, Nederland

Beschrijving

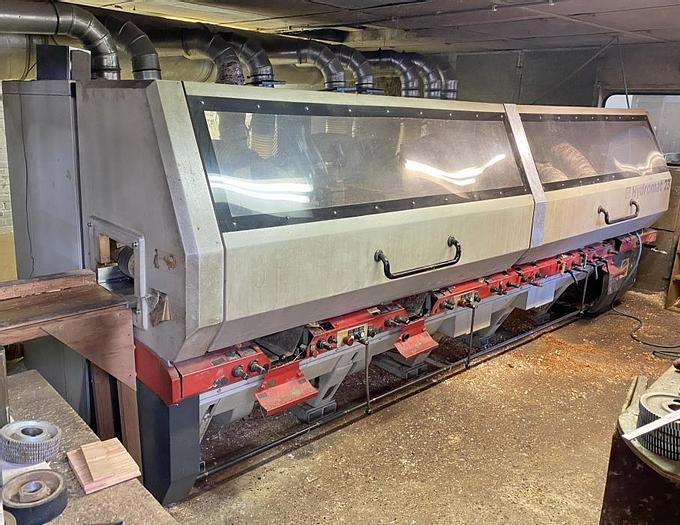

WEINIG, type Hydromat 23 WEINIG four side moulder, type Hydromat 23 Manufacture year 1996 Machine specifications: Planing width 20 - 230 mm Planing height 8 - 160 mm Feed speed 8 - 80 m/min Motor power feeding 18.5 kW Spindle layout: 1. Horizontal bottom spindle, motor power 11 kW 2. Vertical right spindle, motor power 11 kW 3. Vertical left spindle, motor power 11 kW 4. Vertical right spindle, motor power 11 kW 5. Vertical left spindle, motor power 11 kW 6. Horizontal top spindle, motor power 15 kW 7. Horizontal bottom spindle, motor power 15 kW 8. Horizontal top spindle, motor power 15 kW 9. Horizontal bottom spindle, motor power 15 kW - Hydraulic front bearing for spindle 1, 6, 7, 8 and 9 - Equipped with jointers - Spindle diameter 50 mm - Automatic lubrication system - Driven feeding rollers in table - Heavy duty cardan feeding - Feed speed frequency controlled - Digital read out feeding speed - Separate electricity trunk with separate control panel - Incl. tooling and accessories

Specificaties

FabrikantWeinig
ModelHydromat 23
ConditieGebruikt
