REX Bigmaster 1430

REX Bigmaster 1430

Vraag ons om de prijs

Hardinxveld-Giessendam, Nederland

ofBel +31-184-614611

Beschrijving

REX wide planer, type Bigmaster 1430



Machine specifications


- Working width 100 - 1430 mm

- Working height 40 - 310 mm

- Feed speed 3 - 18 m/min

- Feed motor 7.5 kW


Spindle layout:

1. Horizontal spindle bottom, motor 37 kW

2. Horizontal spindle top, motor 45 kW

3. Vertical spindle right, motor 22 kW

4. Vertical spindle left, motor 22 kW

# Chamfering device right + left, each 1.85 kW


- Upper part can be quickly adjusted with 6 lifting columns

- 4 driven feed rollers in the upper part of the machine

- 5 driven feed rollers in machine stand

- Horizontal shafts with quick-release knife shaft

- Vertical spindles with floating shafts

- Vertical spindles with counter bearings

- Heavy duty outfeed unit with 4 rollers with larger width for curved wood.

- Feed speed with frequency converter

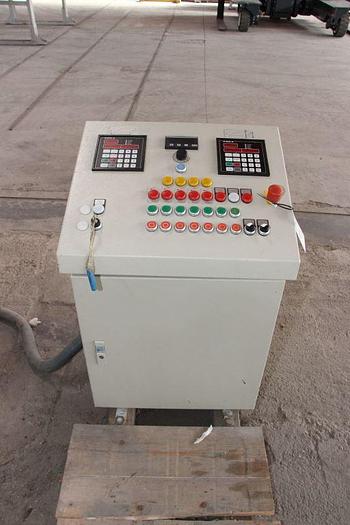

- Control panel with digital positioning controller for planing width and planing thickness

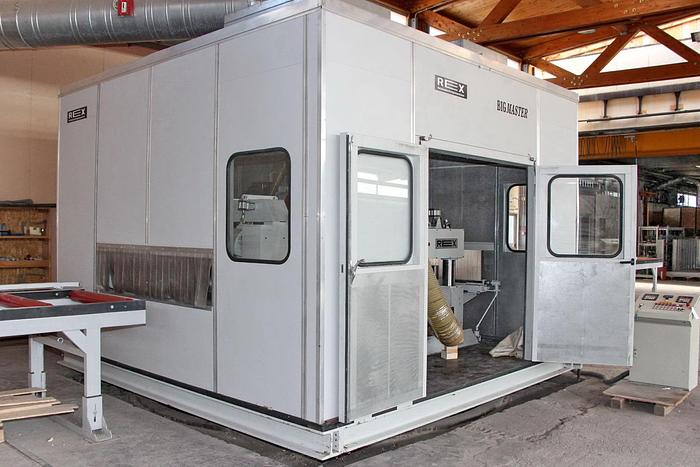

- Soundproof cabin

- Machine and cabin on a slewing ring that can be retracted into the ground


Machine is in like new condition

Specificaties

FabrikantREX
ModelBigmaster 1430
ConditieGebruikt
