Primultini CEI

Verkocht

Primultini CEI

Plaats:Hardinxveld-Giessendam, Nederland

Beschrijving

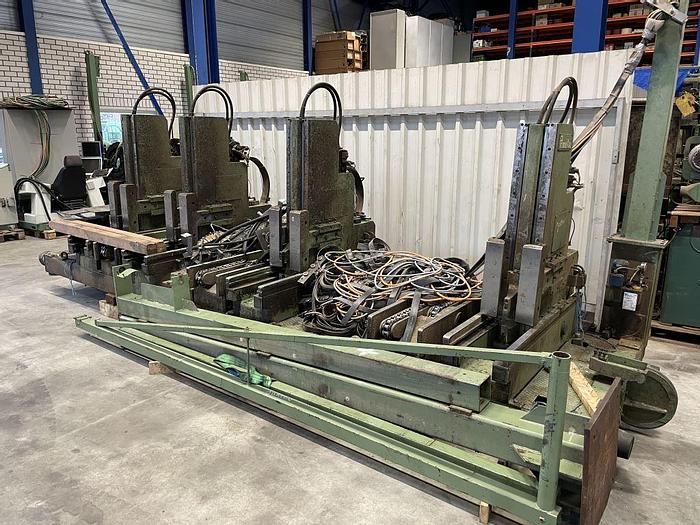

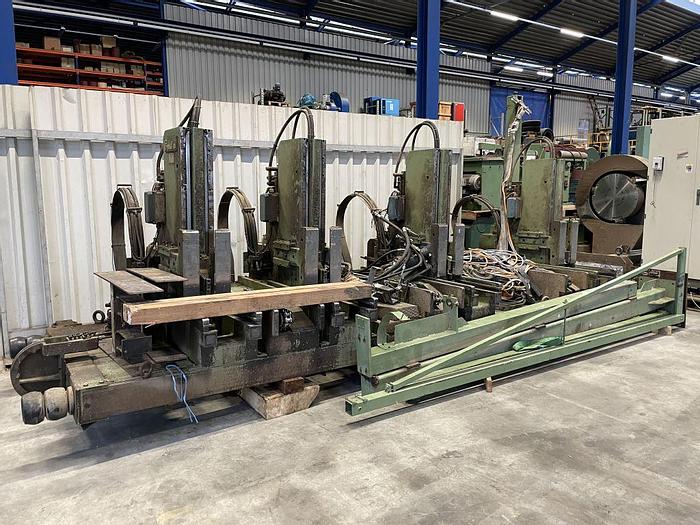

PRIMUTLIN log carriage CEI


Consisting of:


PRIMUTLIN log carriage, type CEI

manufacture year 2009


Machine specifications:

- 4 pc. hydraulic headridges

- Distance between headridges 1850 – 1400 – 950 mm

- Opening headridges horizontal 1000 mm

- Opening vertical of clamps 900 mm

- Stroke of the clamps 20 – 130 mm

- Independent headblocks, powered by hydraulic cylinders, for log centring, stroke 200 mm

- Automatic log alignment by photocells and linear potentiometers

- Each headridge with double hydraulic centering pad

- 4 integrated double arm (V-shape) log turners


Hydraulic driven rope feeding with seperate hydraulic pump

with rails and guiding rollers

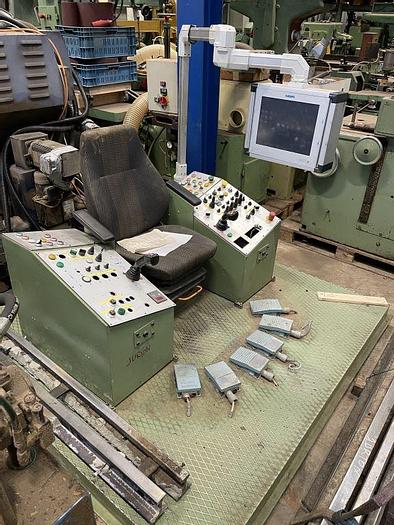

PRIMULTINI control unit with PRIM 602 touch screen controller

incl. electric cabinets



Specificaties

FabrikantPrimultini
ModelCEI
ConditieGebruikt
