Primultini SEB - CEC

PRIMULTINI log band saw line SEB - CEC

This bandsaw line was fully reconditioned in 2017

The line is composed of:

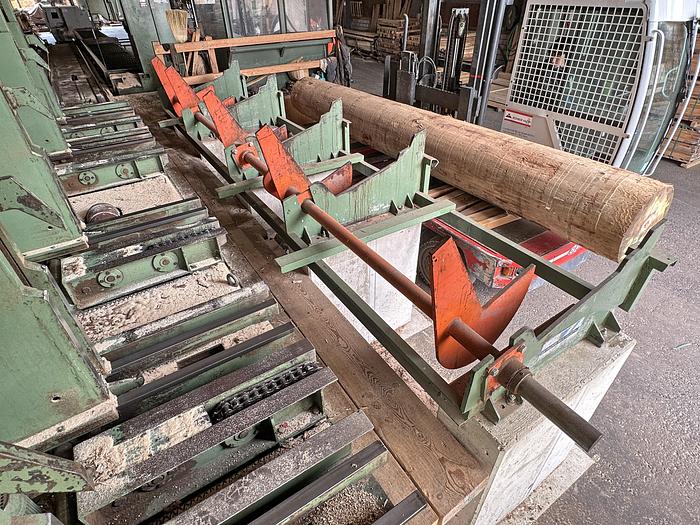

Log loading device

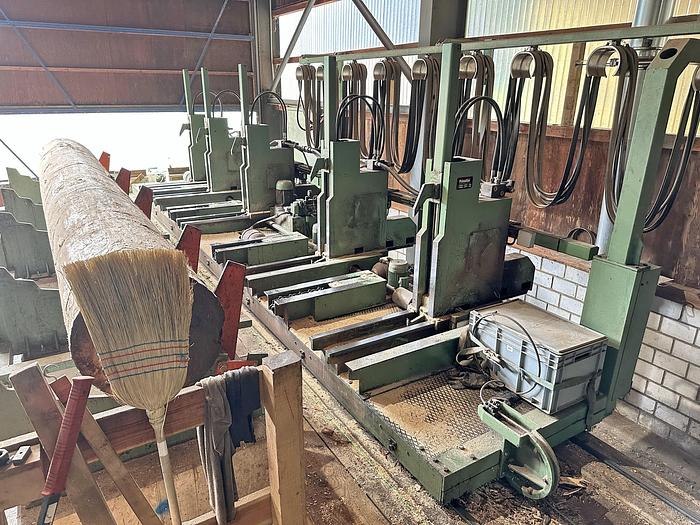

PRIMULTINI log carriage, type CEC

- 5 headridges with hydraulic clamping

- Opening headridges 700 mm

- Total length carriage ca. 8000 mm

- 4 Integrated log turners

- Hydraulic power unit

PRIMULTINI rope feeding

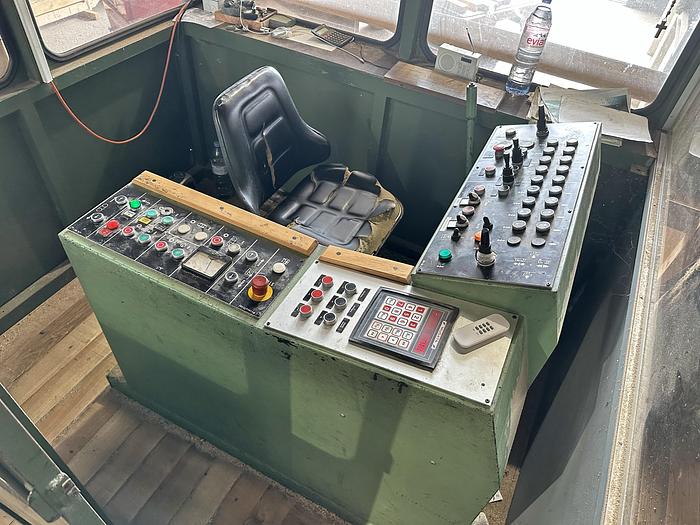

PRIMULTINI control unit with electric thickness setup

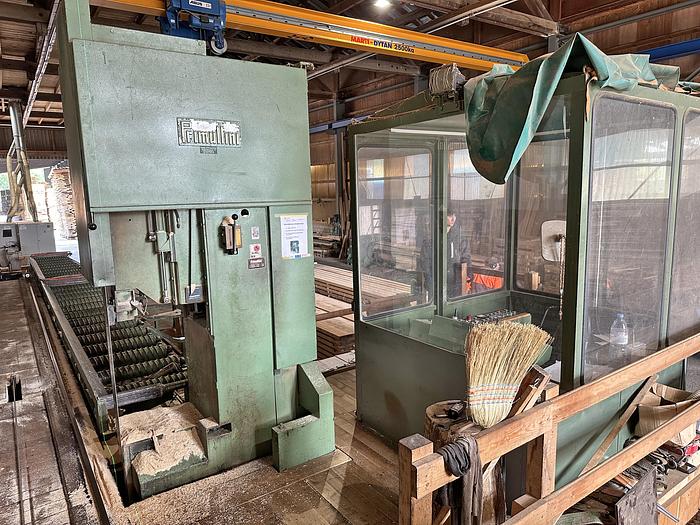

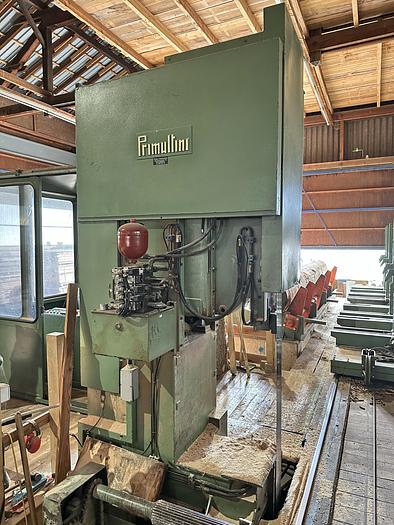

PRIMULTINI bandsaw, type SEB 1150

- Diameter flywheels 1150 mm

- Width of flywheels 135 mm

- Max. saw blade width 150 mm

- Electric adjustment blade guide

- Electric adjustment blade tension upper wheel

- Motor power 50 Hp

- Incl. bandsaw lubrication system

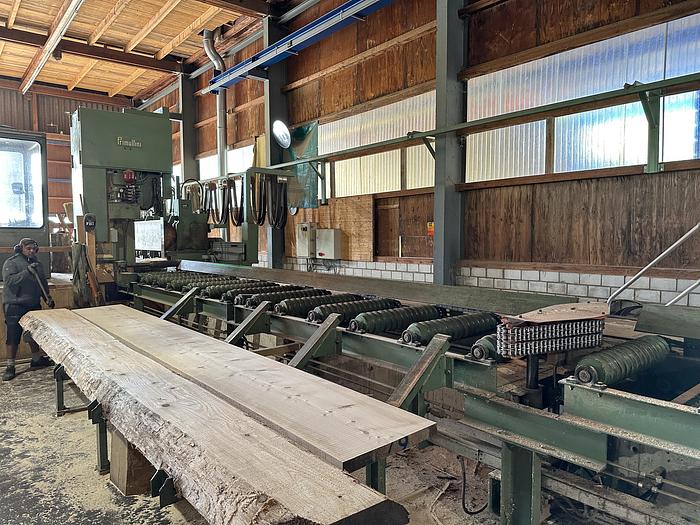

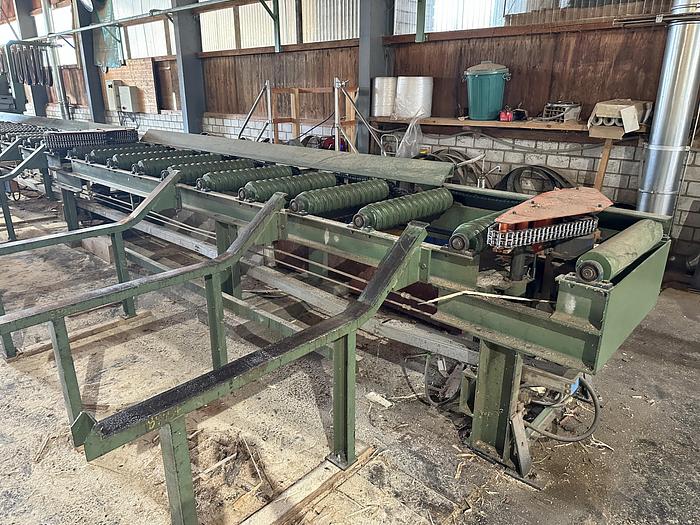

Outfeed roller conveyor

- 2 outfeed stations

- 2 liftable guiding rollers

Incl. sawblades and grinding machine
