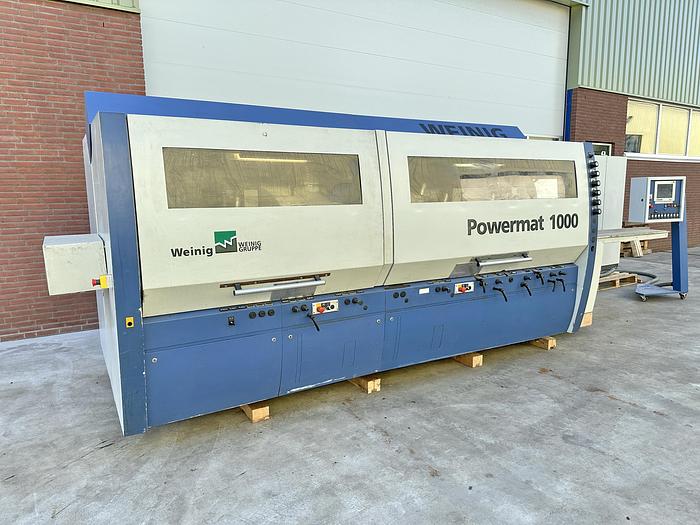

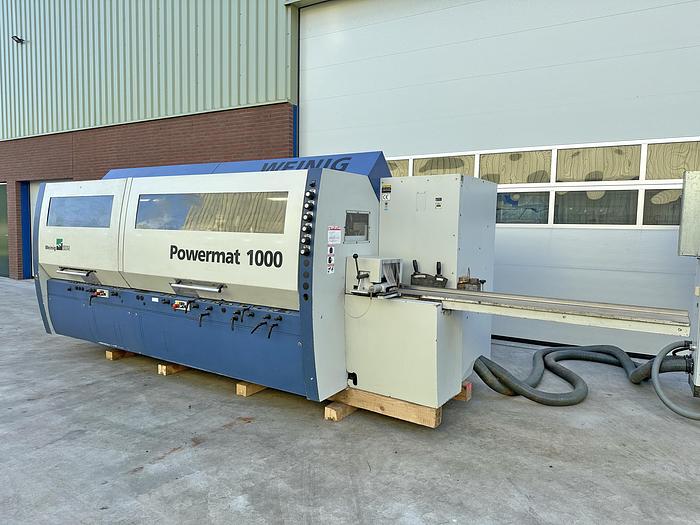

WEINIG Powermat 1000

Weinig Powermat 500

Manfucture year 2011

Machine specifications:

- Planing width 20 - 230 mm

- Planing height 8 - 160 mm

- Feed speed 5 – 30 m/min

- Feed motor 4 kW, with inverter

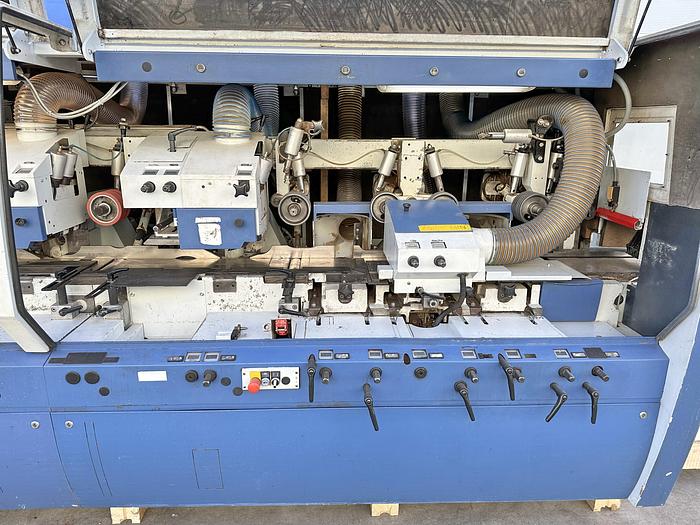

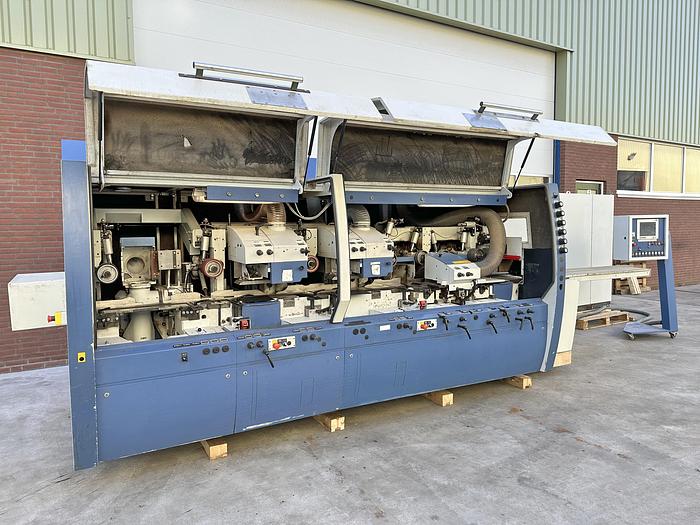

Spindle layout:

1. Horizontal bottom spindle, 7.5 kW

2. Vertical spindle right, 11 kW

3. Vertical spindle left 11 kW

4. Horizontal top spindle, 15 kW

5. Horizontal top spindle, 15 kW

6. Horizontal bottom spindle, 7.5 kW

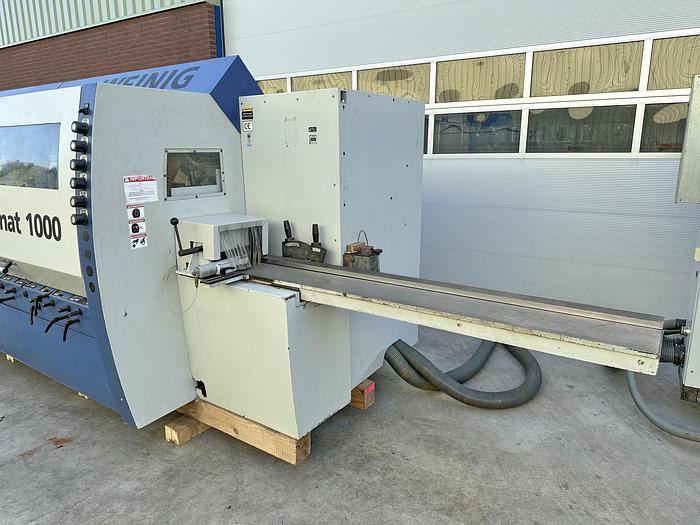

- Infeed table 2500 mm

- Motor brakes

- HSK for spindles: 2, 3, 4, 5, 6

- All spindles 8000 rpm

- Spindle diameter 40 mm

- EasyCom touchscreen controller

- CNC positioning for spindle 3, 4 and 5

- Driven table rollers

- Waxalite pump

- Incl. accessories
