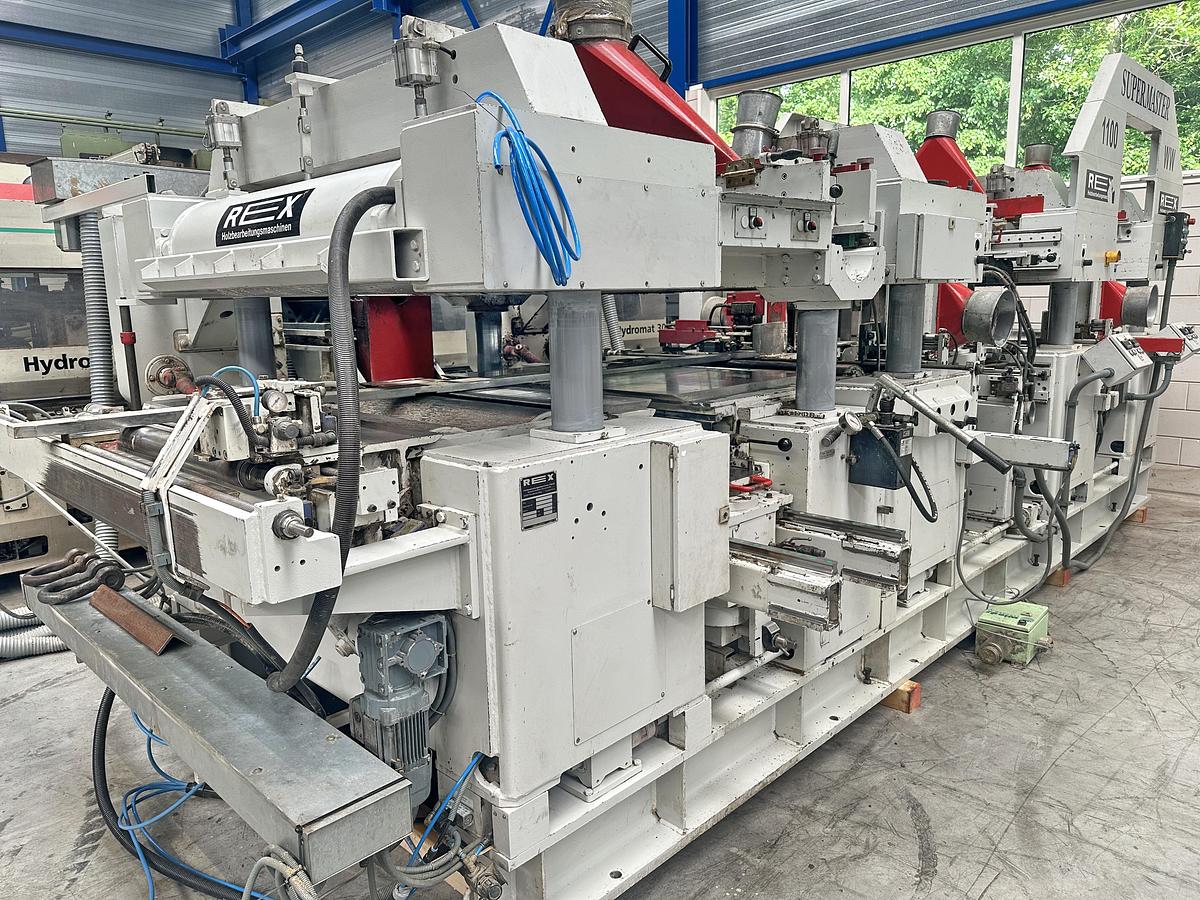

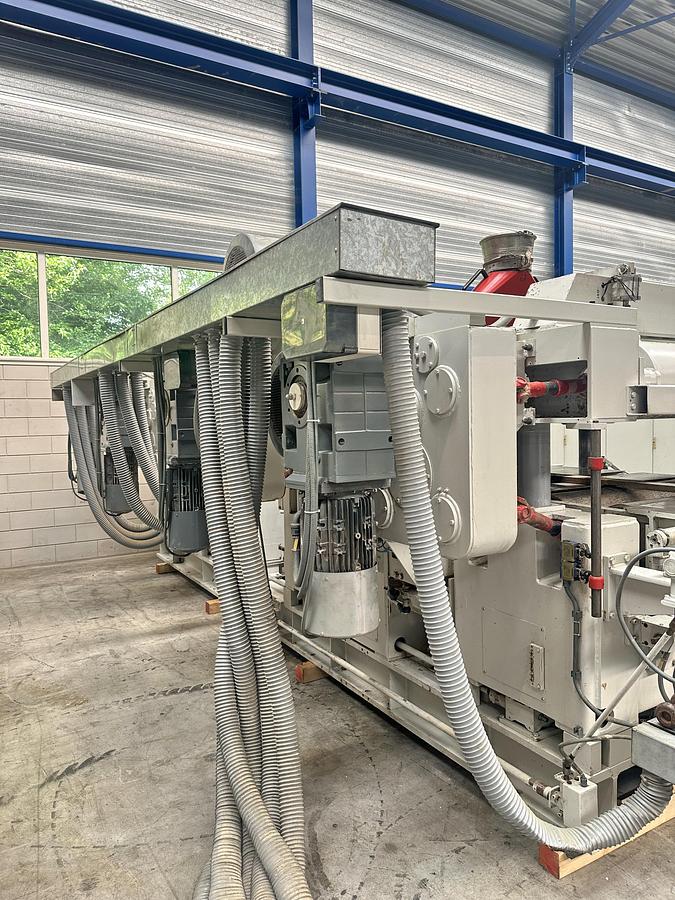

REX Supermaster 10/110-WW

REX wide planer, type SUPERMASTER 10/110-WW

Manufacture year 2009 (left hand version)

Machine specifications

- Working width 80 - 1100 mm

- Working height 40 - 300 mm

- Feed speed 6 - 60 m/min

- Electric driven feeding system, 4x 9.2 kW

Spindle layout:

1. Horizontal spindle bottom, motor 45 kW

2. Horizontal spindle top, motor 45 kW

3. Vertical spindle right, motor 25 kW

4. Vertical spindle left, motor 25 kW

# 4 pc. chamfering device top/botoom and right/left, each 1.85 kW

5. Vertical spindle right, motor 25 kW

6. Vertical spindle left, motor 25 kW

- Upper part can be quickly adjusted with 10 lifting columns

- Driven feed rollers in the upper part of the machine

- Driven feed rollers in machine stand

- Vertical spindles with counter bearings

- Heavy duty outfeed unit with 4 rollers

- Feed speed with frequency converter

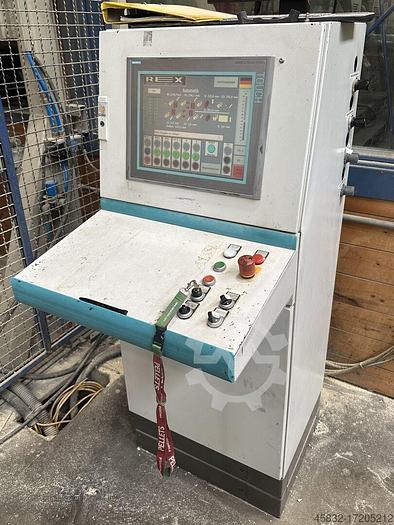

- Separate electricity trunk with separate control panel

- Incl. accessories
