KÄLIN Industry-HQ 4-670 2AF-EX

KÄLIN Industry-HQ 4-670 2AF-EX

Vraag ons om de prijs

Plaats:Hardinxveld-Giessendam, Nederland

ofBel +31-184-614611

Beschrijving

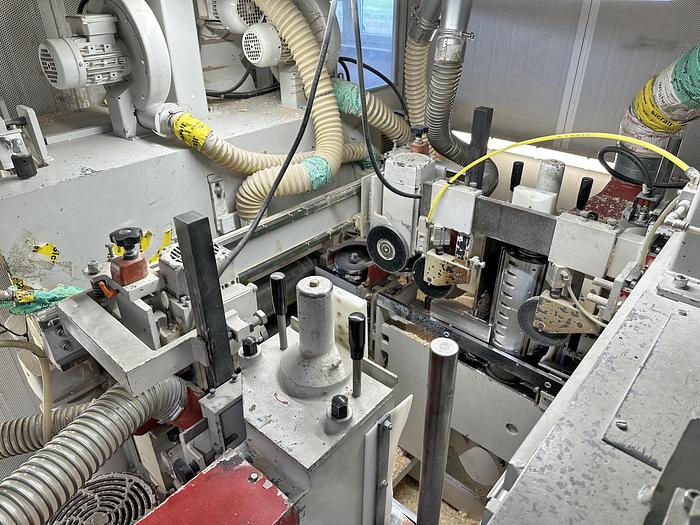

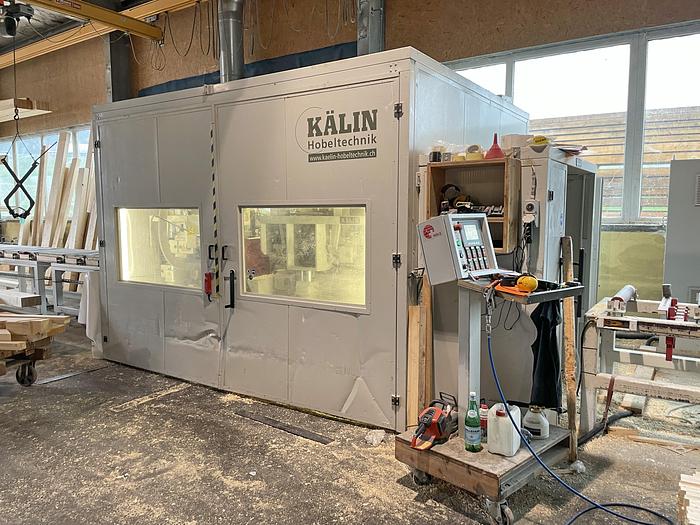

KÄLIN wide planer, type Industry-HQ 4-670 2AF-EX

Manufacture year 2011


Machine specifications


- Working width 60 - 650 mm

- Working height 30 - 310 mm

- Feed speed 6 - 36 m/min

- Feeding system, total 17.6 kW


Spindle layout:

1. Horizontal spindle bottom, motor 18.5kW

2. Horizontal spindle top, motor 22 kW

3. Vertical spindle right, motor 15 kW

4. Vertical spindle left, motor 15 kW

# 4-sides chamfering device, each 1.5 kW


- Upper part can be quickly adjusted with 6 lifting columns

- Driven feed rollers in the upper part of the machine

- Driven feed rollers in machine stand

- Vertical spindles with counter bearings

- Heavy duty outfeed unit with drive

- Feed speed with frequency converter

- Control panel with digital positioning controller for planing width and planing thickness

- Soundproof cabin


Specificaties

FabrikantKÄLIN
ModelIndustry-HQ 4-670 2AF-EX
Jaar2011
ConditieGebruikt
